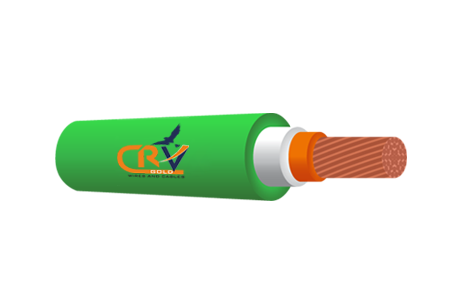

HOUSEGUARD WIRES COPPER MULTISTRAND FROM 1 SQ. MM. TO 400 SQ. MM. – FR/FRLS/ZHFR
OUR RANGE OF HOUSE WIRES – GIVES A NEW MEANING TO THE TERM SAFETY. THESE WIRES ARE COATED WITH A SPECIALLY FORMULATED LEAD FREE + HEAT RESISTANT + FLAME RETARDANT PVC INSULATION TO MAKE SURE SAFETY IS NEVER COMPROMISED.
They meet the latest requirements of IS 694:2010 in regard to flame retardation properties which translates into extra protection against electric shocks, short circuits and fires. To add to that, their special PVC compound offers high insulation resistance and dialectric strength.
FR-Flame Retardant Wires
CRV Wires and Cables come equipped with the unmatched triple layer protection that ensures safety and durability. We deploy our cutting-edge technology and superior quality material to give you the unmatched quality product.
FRLS–Flame Retardant Low Smoke Wires
CRV Flame Retardant Low Smoke wires are manufactured as per IS 694. Specially formulated PVC polymers help to reduce the toxic gases and smoke. This makes them safe, reliable and fire retardant.
LSZH–Low Smoke Zero Halogen
Special Compounds are developed for LSZH wires which has zero halogen and emits low smoke. It can withstand high temperatures compared to a normal FR wire.
Features
Heat Resistant Core
Triple Layer Insulation
Flame Retardant Insulation
ROHS Compliant
Anti-Termite & Anti-Rodent
Specifications
| Part No. | Nominal Area of Conductor | No./ Nominal Diameter of Conductor strands* | Nominal Thickness of Insultion | Approx O.D | Maximum DC Conductor Resistance Per Km @ 20oC+ | current Carrying Capacity 2 cables single phase # | Packing | |
|---|---|---|---|---|---|---|---|---|
| Casing/ Trunking | Unenclosed Clipped directly to a surface | |||||||
| (Sq.mm) | (Strands/mm) | (mm) | (mm) | (ohms/km) | (Amps) | (Amps) | ||
| PCWI001 | 0.75 | 24/0.20 | 0.60 | 2.35 | 26.0 | 7 | 8 | 90 mtrs in mono boxes |
| PCWI002 | 1.0** | 14/0.30 | 0.70 | 2.75 | 18.1 | 13 | 14 | |
| PCWI003 | 1.5** | 22/0.30 | 0.70 | 3.05 | 12.1 | 15 | 18 | |
| PCWI004 | 2.5** | 36/0.30 | 0.80 | 3.70 | 7.41 | 20 | 24 | |
| PCWI005 | 04.00 | 56/0.30 | 0.80 | 4.10 | 4.95 | 27 | 32 | |
| PCWI006 | 06.00 | 84/0.30 | 0.80 | 4.70 | 3.30 | 35 | 42 | |
Premium Quality
Quality assurance and continued process of improvements for both customers as well as our employees.
Latest Advancements
Known for upgrading our systems, services and processes by innovation and best use of technology.
Unmatched Safety Standards
Continue to believe in always upgrading the Machineries with the Best Technical Know-How enabling safety at work.
Optimal Pricing
Aimed to offer the most competitive pricing for enabling the End Users of our Products.
